Description
1. 2.4-inch TFT full-colour LCD screen display;
2. Touch keyboard operation, wireless transmission, easy installation;

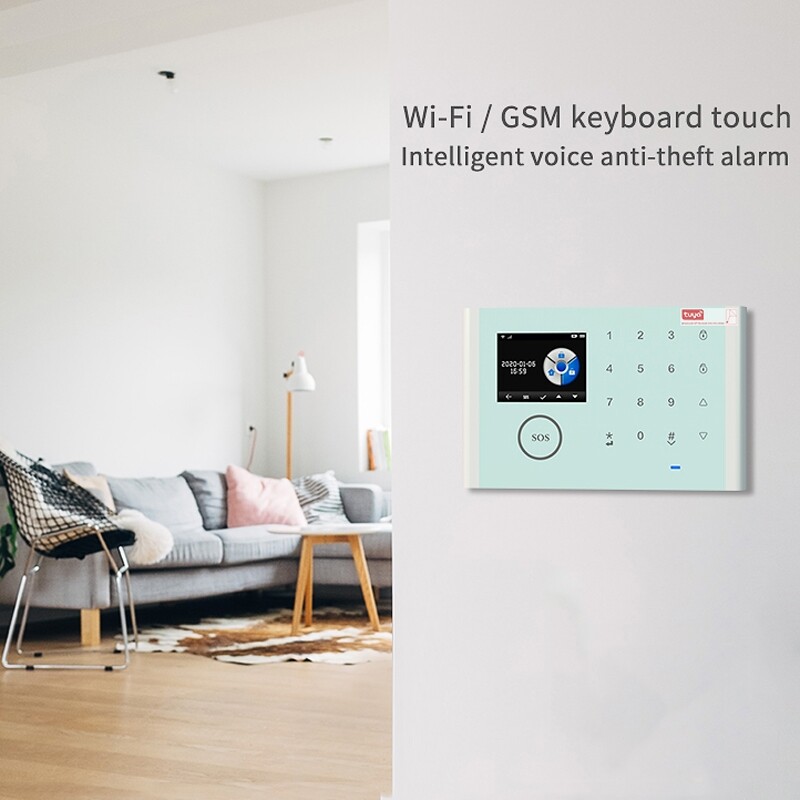

3. One machine and two networks Wi-Fi/GSM , never disconnected from the Internet, safer and more assured;
4. Support doorbell button prompt tone function, Ding Dong, Ding Dong (default)
5. One-key SOS secret distress alarm; support duress code, can secretly call the alarm in an emergency (default alarm tone, can be set);

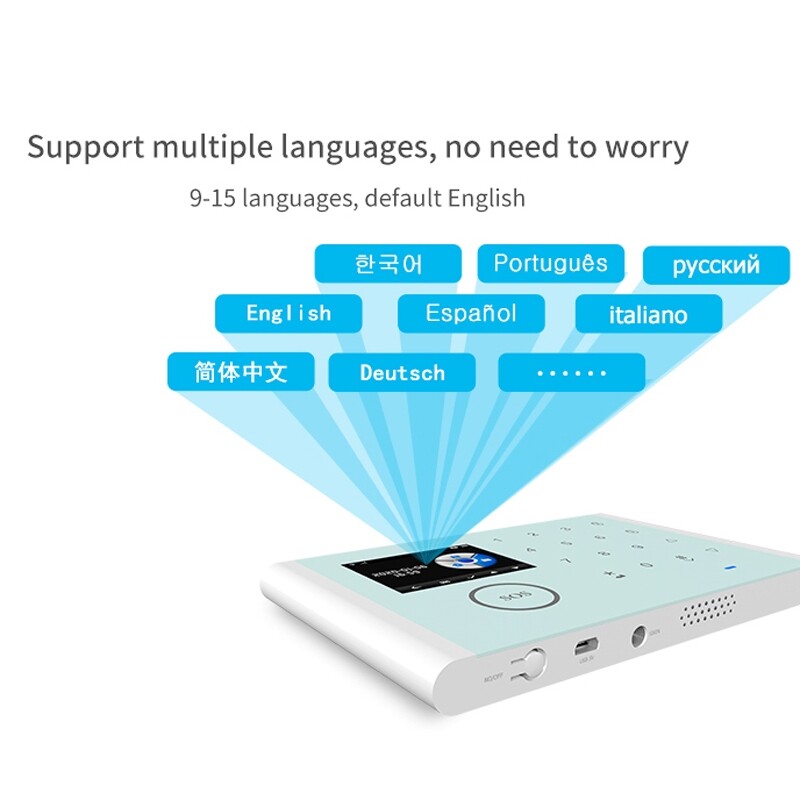

6. Support 9 languages: Chinese, English, German, Korean, Spanish, Portuguese, French, Italian, Russian (default English).
7. Support remote WIFI network APP alarm push, telephone, SMS, and other multi-channel alarm methods and management;

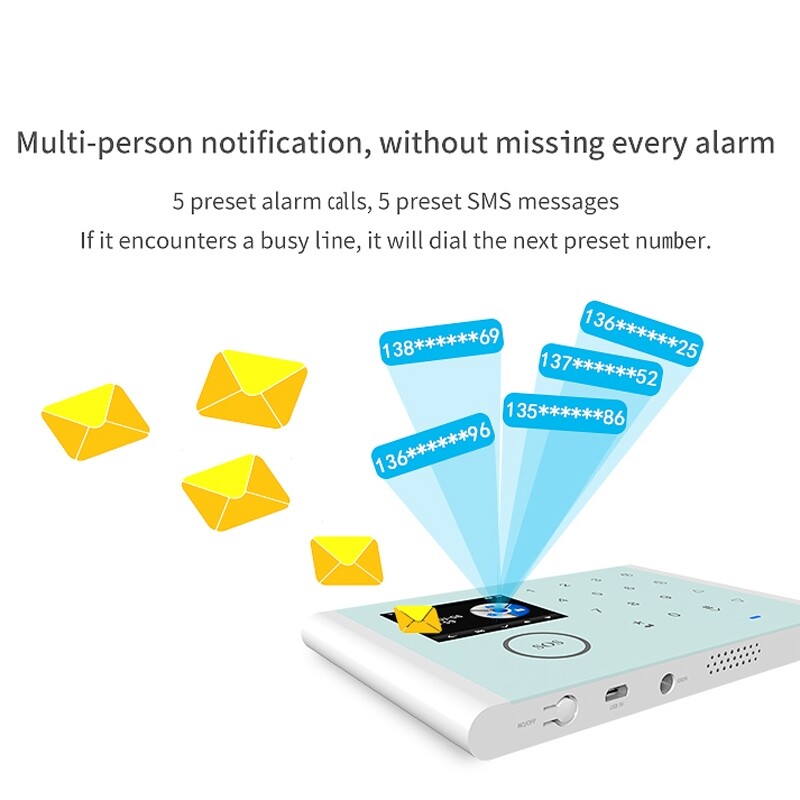

8. Support 5 groups of pre-set alarm phone numbers and SMS numbers, and support each group of numbers to turn off/on management;
9. One-key operation to add wireless accessories, no need to distinguish defence zones, attributes, names, etc.;
10. Support the main door, hall, emergency, bedroom, window, balcony, perimeter, smoke, gas, carbon monoxide, water leakage, doorbell, PIR detector, door magnetic detector and other defence zone names and numbers can be set arbitrarily;
11. Support the setting of defence zone types such as going out defence zone, staying defence zone, doorbell, silent defence zone, and 24-hour defence zone;

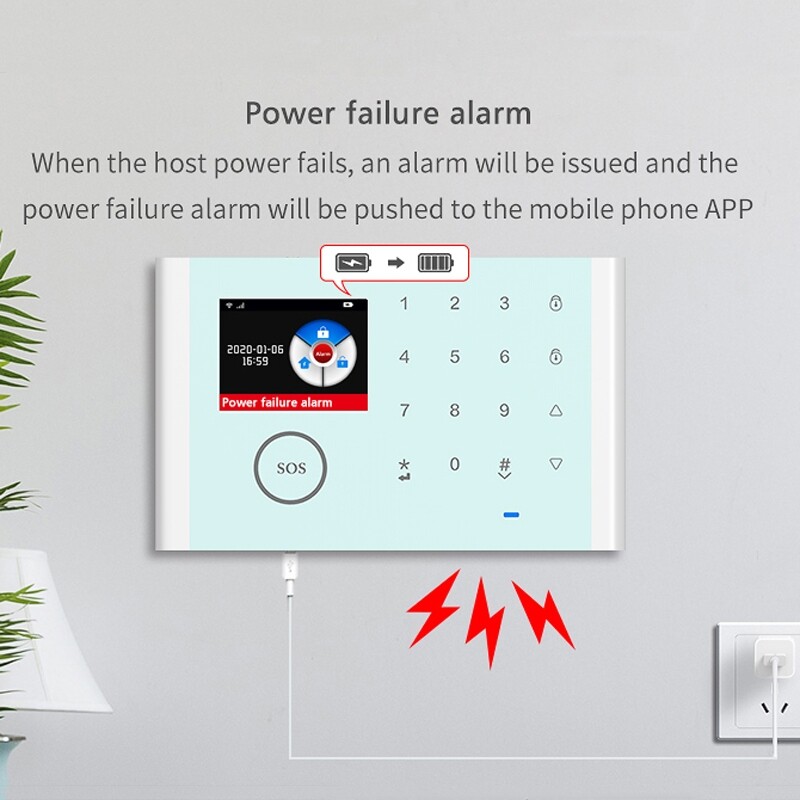

12. Support multiple extended alarm display and alarms such as main power failure, backup battery shortage, tamper alarm, etc.;
13. Dual horn alarm sound design, built-in horn (default)
14. Support free arming and disarming function
15. Support arbitrary input of fraudulent numbers in the defence zone
16. Support timing arming and disarming and message operation;
17. Support telephone function, similar to an ordinary telephone;
18. Support 1 group of user password management (closed by default) see the manual for enabling
19. Support IOS system (within version 12.3.1), Android system
https://youtu.be/xJfP5Owv3Uc
Technical Data
| 1. Power supply | 110~230VAC (input) 5V/1.0A (output) |
| 2. Backup battery | 3.7V/500mAh |
| 3. Standby current | less than or equal to 80uA |
| 4. Alarm current | less than or equal to 500mA |
| 5. GSM network communication frequency | 850/900/1800/1900mHz |
| 6. 2G GSM network. All the mobile providers have confirmed with the UK Government And Eu that they do not plan to offer their 2G and 3G services beyond 2033. | |
|---|---|
| 7. WIFI standard | IEEE802.11 b/g/n wireless standard |
| 8. Working temperature | -10-60 degrees Celsius |
| 9. Working humidity | less than or equal to 95% |
| 10. Wireless frequency | 433MHz |
| 11. Built-in alarm siren | greater than or equal to 85dB |
| 12. Transmission outdoor wireless power | 10+/-14dB |
| 13. Alarm transmission | WIFI+GSM |
| 14. Product size | 160 x 100 x 12.5mm |

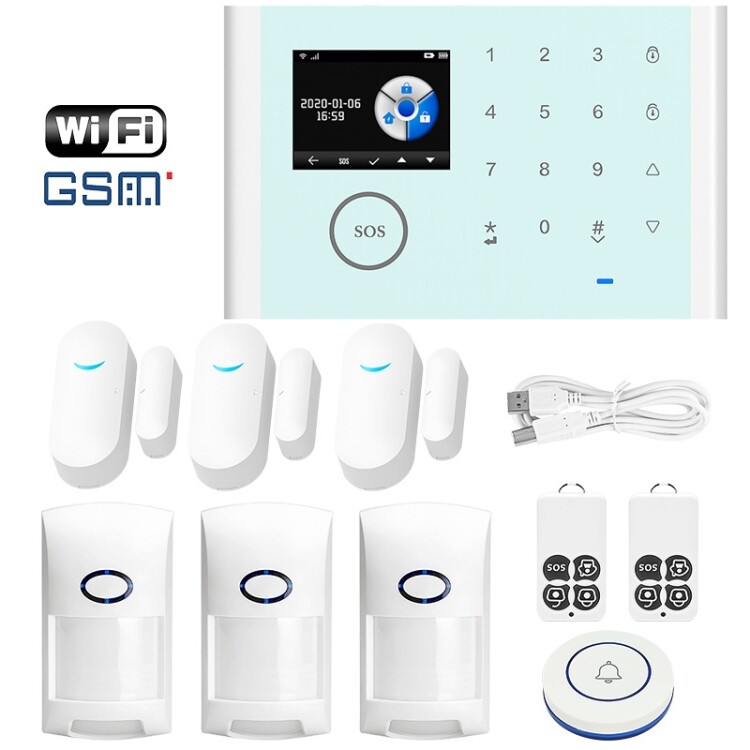

| This set incudes | |
| CS118 host x 1 | |

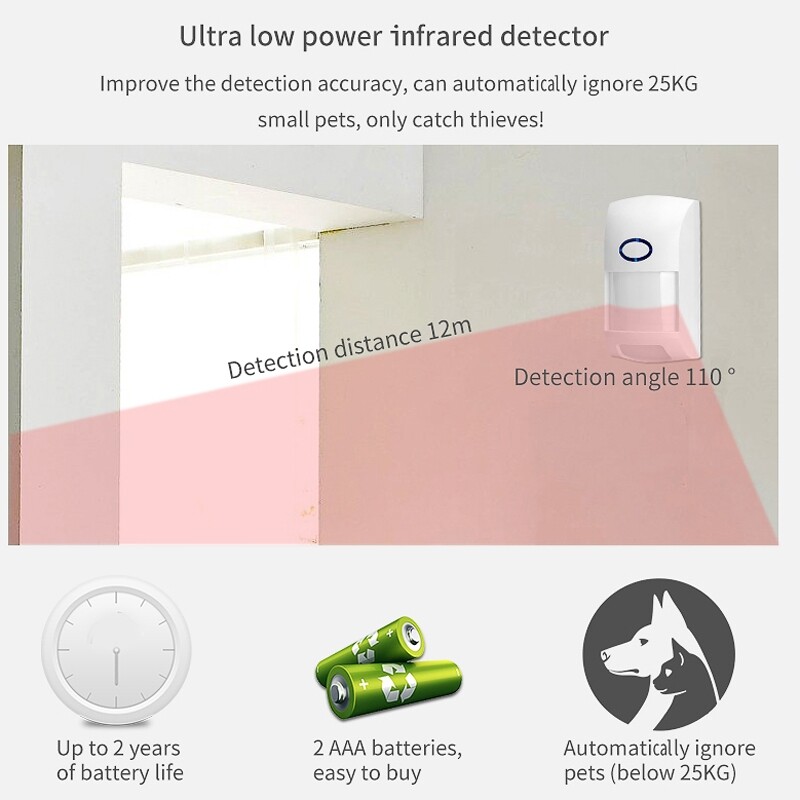

| CT60M Anti-Pet Infrared Detector x 3 | |

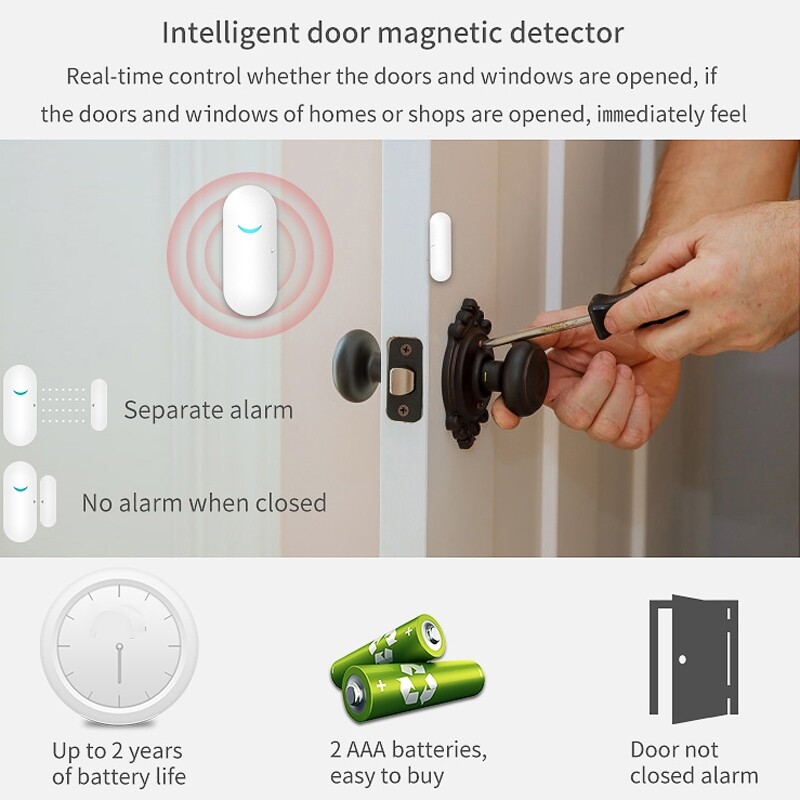

| CD101 wireless door sensor x 3 | |
| RC22 wireless remote control x 2 | |
| M6 wireless doorbell button x 1 | |
| 1 USB cable (not including charging head) | |
