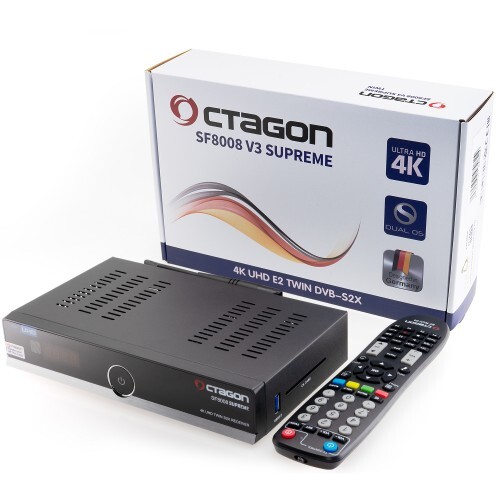

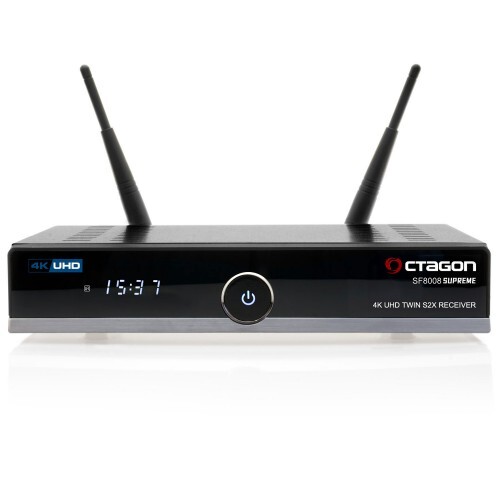

OCTAGON SF8008 V3 SUPREME TWIN 4K UHD 2x DVB-S2X LINUX ENIGMA 2 + DEFINE OS [DUAL-OS]
The impressive success story of the SF8008
Description
OCTAGON SF8008 V3 SUPREME TWIN S2X 4K UHD 2160p H.265 HEVC Linux Enigma 2
Dual Wi-Fi Multi-Stream Twin Satellite DVB-S2X Tuners.
LATEST 2024 VERSION WITH INTERNAL PCIe M.2 NVMe SSD SLOT.
Octagon SF8008 V3 Supreme 4K UHD supported OpenViX, OpenATV, OpenPLi, OpenEIGHT, PurE2 and many more!
The impressive success story of the SF8008 models forms the basis for the latest innovations in the Octagon Supreme series. We are proud to present the Octagon SF8008 SUPREME models, which bring with them a world first - the M.2 interface for the internal integration of M.2 hard drives. The receiver with Dual OS meets all the requirements of a multimedia device and now opens up even more possibilities. By using a new tuner and demodulator, the already high quality was further improved. The Supreme models set new standards with an advanced tuner and demodulator for optimized reception, the integration of an M.2 interface for internal hard drives, built-in dual-band WiFi (2.4/5 GHz) with up to 1200 Mbps and Bluetooth 5.1 - a ground breaking combination of performance and connectivity.

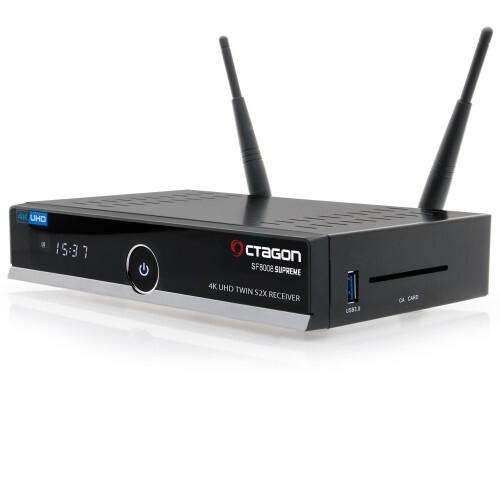

The Octagon SF8008 SUPREME TWIN has 2 x DVB-S2X tuners, USB 3.0 port, Gigabit LAN interface and H.265 video decoding, it enables a comprehensive 4K experience. Discover the new 4K feeling with the Octagon SF8008 SUPREME Twin.
The Octagon SF8008 SUPREME 4K UHD receiver has two integrated DVB-S2X satellite tuners. With impressive performance (15,000 DMIPS) and lightning-fast switching times, it offers an outstanding user experience.
Modern entertainment & numerous features

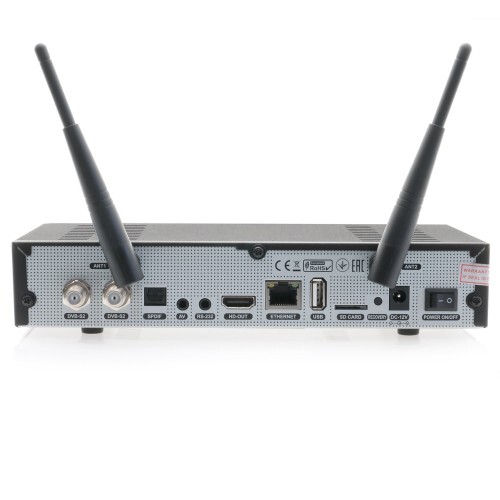

The Octagon SF8008 4K UHD supports a variety of images, allows the download of additional plugins and offers HDR, HLG and H.265 decoding. With Gigabit LAN (1000Mbps) and permanently installed WIFI module, it ensures a quick connection to high-resolution content. Two WiFi antennas are also available. With an M.2 slot, USB 3.0, USB 2.0, a MicroSD slot and a card reader, the receiver offers sufficient options for playing content from external storage media. Additional connections include HDMI 2.0, AV (Audio & Video) and an S/PDIF output for digital audio signals. In standby, the power consumption is less than 0.5 watts.
Versatile:
The receiver offers a PVR recording function, time-shifted television via internal M.2 HDD hard drive or external USB stick, access to YouTube, WiFi, media player & library, internet functions, plug-in download and is for use when camping and more suitable.
Extensive equipment:

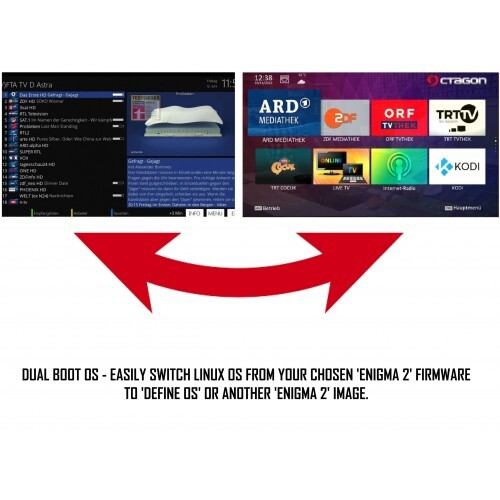

The receiver has dual OS with E2 Linux and Define OS, 2xDVB-S2X satellite tuner, recording function and supports customizable skin user interface as well as many free plugins (extensions and apps) under the E2 Linux OS.
User-friendly:
The receiver offers an intuitive multilingual menu, extended EPG (Electronic Program Guide), numerous images and skins for download, satellite-to-IP TV optimization and support for E2 Multiroom Client.
Future-proof:

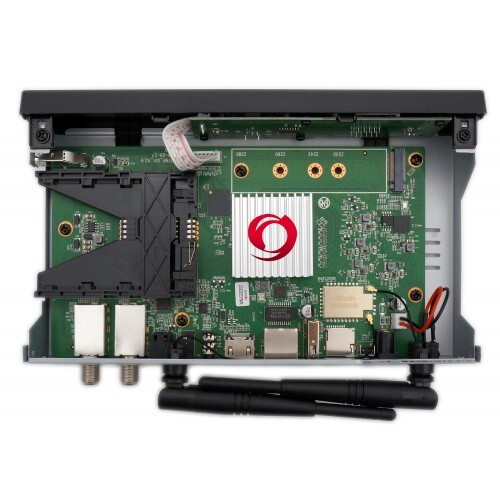

The receiver is equipped with a 4K H.265 HEVC UHD processor, 8GB eMMC Flash/1GB DDR DRAM, M.2 SSD slot, HDMI & USB with PVR function, LAN, Wi-Fi, AV via RCA and for satellite to -IP TV optimized.
Technical Data
| Metal housing & solid workmanship | |
|---|---|
| Dual OS | E2 Linux & Define OS Linux |
| – 4K H.265 HEVC UHD processor (3840 x 2160) | |

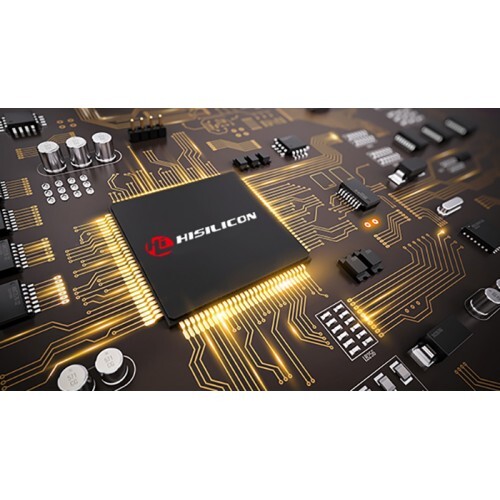

| – Hisilicon Hi3798MV200 Huawei | |
| – Quad Core 64Bit (4x 1.6GHz) 15000 DMIPS | |
| – Flash 8GB eMMC | |
| – RAM 1GB DDR4 | |

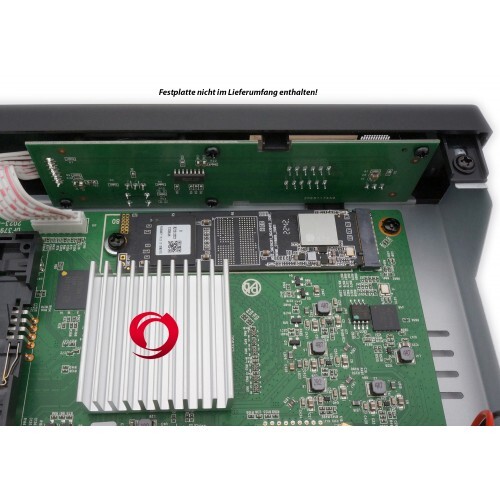

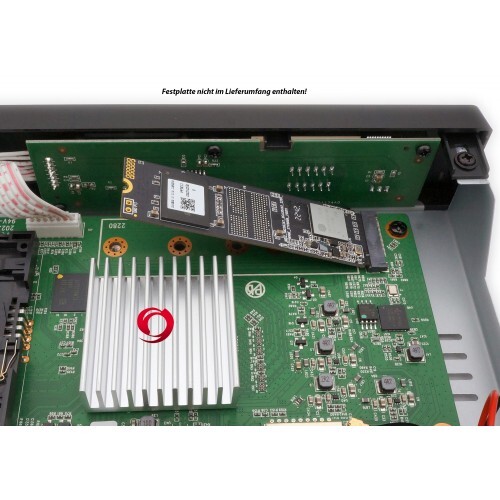

| – M.2 slot (M.2 SSD | M KEY – PCIE NVME) |
| – Gigabit LAN Ethernet (1000Mbps) network interface | |
| – Fixed 2.4/5G dual-band WiFi (WLAN) up to 1200Mbps, 2x WiFi antennas | |
| – 4-digit 7-segment display | |
| – CA card reader | |
| – Hardware BlindScan (blind search) | |
| – 2 x DVB-S2X (twin tuner) + multistream support | |
| – Multiroom Client & Sat to IP Client Support | |
| – HDMI 2.0a & USB 3.0 | |
| – MicroSD slot | |
| – HDMI CEC support | |

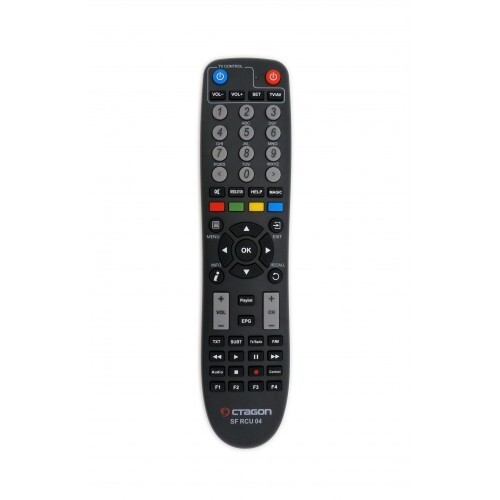

| – Learnable remote control | |
| DUAL OS | E2 Linux OS operating system & OCTAGON Define Linux OS |
| – 2x DVB-S2X 4K UHD & Multistream (T2-MI direct input) | |
| – Symbol rates from 100 – 80,000 SR | |
| – PIP HD & UHD (Picture in Picture) | |
| – HDR 10bit & HLG | |
| – Multi Transcoding & Multiroom | |
| – Sat>IP Client & V-tuner USB dongle | |
| – Blind scan (blind search) | |
| – Media libraries of public broadcasters | |
| – HW Multiboot | |
| – ffmpeq HW playback support | |
| – 2160P Media Playback H.264 and H.265 | |
| – OTA updates | |
| – DiSEqC 1.0/1.1/1.2, USALS, Unicable, Fast Scan | |
| – PVR recordings (*optional) | |

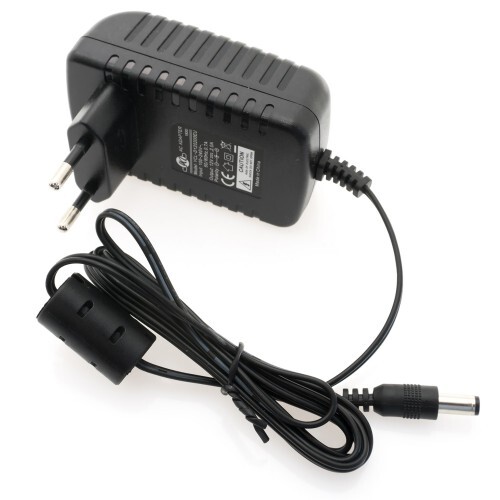

| – 12V connection (also suitable as a camping receiver for motorhomes or caravans. 12V car adapter not included) | |
| – 0.5W standby | |
